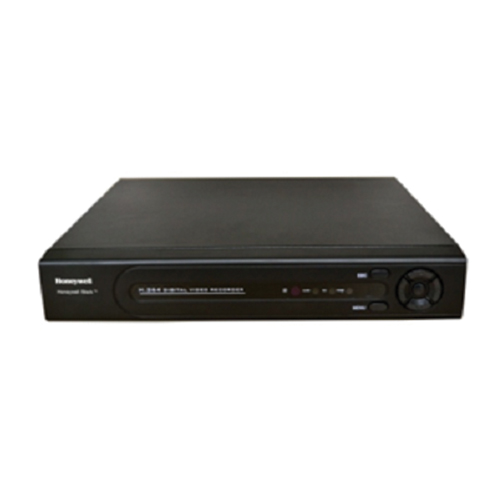

Honeywell CADVR-1004FD-H Digital Video Revorder

QUICK OVERVIEW

The Honeywell Black™ CADVR-1004FD-H is an easy-to-use 1U digital video recorder series available in 4 channels. By deploying H.264 video compression, compatibility with AHD analog cameras, 750TVL (or less than 750TVL resolution), and Honeywell Black™ CALIP series IP cameras, this DVR delivers outstanding video performance for hybrid application of analog and network surveillance.

Add to Wishlist
Compare
Categories: , ,

Description

1 SATA 4-Channel 1080P AHD Digital Video Recorder

The Honeywell Black™ CADVR-1004FD-H is an easy-to-use 1U digital video recorder series available in 4 channels. By deploying H.264 video compression, compatibility with AHD analog cameras, 750TVL (or less than 750TVL resolution), and Honeywell Black™ CALIP series IP cameras, this DVR delivers outstanding video performance for hybrid application of analog and network surveillance.

The user-friendly operation interface with button panel allows users to live view, record, playback, back up and remotely control the system simultaneously. With 1 SATA slot, the maximum storage capacity of the CADVR-1004FD-H is up to 6TB.

The CADVR-1004FD-H is easy to configure and can be operated through smart phone and internet explorer. The CALNVRView mobile APP allows a quick remote access and control to CADVR-1004FD-H via your mobile phone. Free DDNS server service is available to support remote control of the DVR. The CADVR-1004FD-H also comes with a free CMS software CALCMS200 which provides rich functions such as video management, user management, storage, video output, etc.

Market Opportunities

The CADVR-1004FD-H is an ideal solution for high definition surveillance. With 1080P high resolution recording, compatibility with AHD analog cameras, 750TVL (or less than 750TVL resolution), and Honeywell Black™ CALIP series IP cameras, this easy-to-configure and easy-to-operate DVR series is ideal for small to medium scale surveillance installations such as in retail stores, dispensaries, clinics, offices hotels and so on.

FEATURES

  • 1080P high resolution recording
  • Button-panel interface for easy operation
  • Multiplex recording schedule options: manual, alarm, motion detection, timing
  • Multiplex operation: live view, record, play back, backup and remotely control the system simultaneously
  • HDMI and VGA output simultaneously at up to1080P resolution
  • H.264 High profile decoding
  • 1 SATA HDD interface: maximum 6TB storage capacity
  • ONVIF 2.0 compliant
  • Support remote control through DDNS service by free of charge
  • On-line user view: maximum 6 users simultaneously
  • CALNVRView: free Android and Apple app for remote playback, record and snapshot through mobile phone
  • Multiple network monitoring: CAL-CMS200 (for PC), CALNVRView (for mobile app), IE Web browser
  • Power: DC12V
